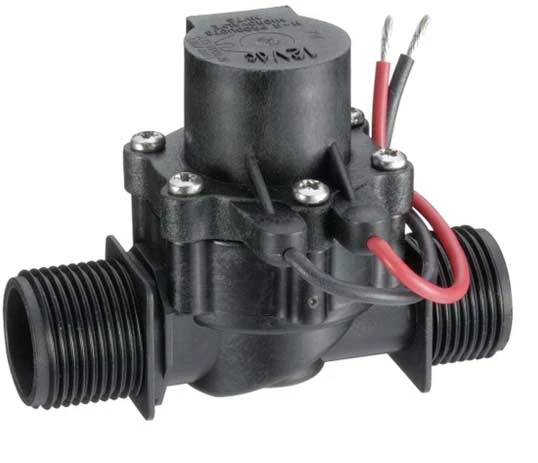

20MM MV80 12VDC NORMALLY OPEN MICRO SOLENOID VALVE

An economical micro control valve with high flow and low pressure loss for use in drip, spray, and pop-up sprinkler watering systems. Ideally suited to residential use to meet standard water meter flows. Also available with a Viton diaphragm option, suitable for chemical spray application

This valve allows water to flow until the application of 12VDC which causes the valve to shut.

FEATURES

• Body material Nylon 66 30% glass filled
• Natural Nitrile elastomer diaphragm, or optional Viton diaphragm>
• Bonnet screws stainless steel 304
• 304 Stainless steel 40 mesh screen (on inlet side of valve)>
• Australian Brand
• Can be dismantled for easy servicing
• Compact design allows for compact installation
• WATERMARK approval ATS 5200.030-2004.

OPERATION

The valve will operate correctly with in the following conditions>

• Ambient temperature 2° C to 60° C</
• Relative Humidity 0% to 100%>
• Temperature of water 2° C to 80° C
• Direction of flow markings on body (check before installing)
• Minimum operating pressure 20kpa
• Maximum operating pressure 1250kpa
• Supply pipe velocity range 1.2 m/s to 6.5 m/s
• Opening speed 1 sec<
• Closing speed 1 sec
