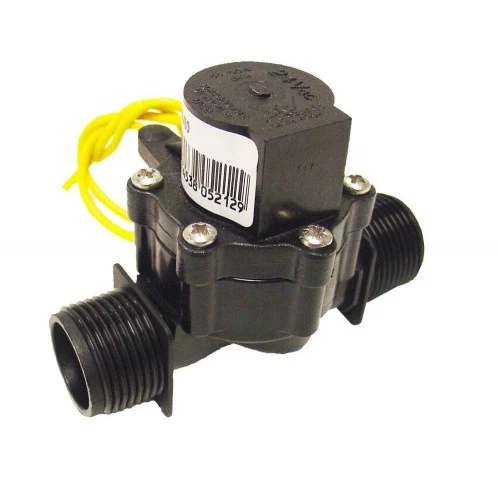

20MM MV80 240VAC MICRO SOLENOID VALVE

An economical micro control valve with high flow and low pressure loss for use in drip, spray, and pop up sprinkler watering systems. Ideally suited to residential use to meet standard water meter flows. Also available with a Viton diaphragm option,suitable for chemical spray application.

FEATURES

• Body material Nylon 66 30% glass filled
• Natural Nitrile elastomer diaphragm, or optional Viton diaphragm
• Bonnet screws stainless steel 304
• 304 Stainless steel 40 mesh screen (on inlet side of valve)
• WATERMARK approval ATS 5200.030-2004.

OPERATION

The valve will operate correctly with in the following conditions

• Ambient temperature 2° C to 60° C
• Relative Humidity 0% to 100%
• Temperature of water 2° C to 80° C
• Direction of flow markings on body (check before installing)
• Minimum operating pressure 20kpa
• Maximum operating pressure 1250kpa
• Supply pipe velocity range 1.2 m/s to 6.5 m/s
• Opening speed 1 sec
• Closing speed 1 sec
