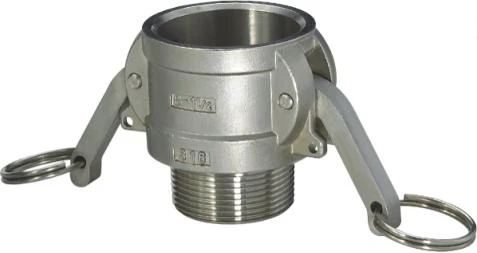

80MM ALLOY CAMLOCK TYPE B

Aluminium Alloy camlocks have been precision machined to rigid tolerances and are heat treated for greater durability. The recess holds the gasket firmly in place and assures proper placement for correct operation. The long spigot design allows the use of more than one pipe clip thus providing greater grip and eliminating the major cause of hose damage.

1. To make a cam connection, simply slide the adaptor into the coupler until it bottoms out. Then with normal hand pressure press the camlock levers down. Using the pin will lock the arms in position.
2. Disassembly is as quick and simple as assembly. Just lift the arms and remove the adaptor.
3. To make a hose connection simply insert the hose over the fitting until the end of the hose butts up against the body of the fitting.
4. One or two pipe clips should be used to complete the joint

COMES WITH A BUNA-N WASHER
