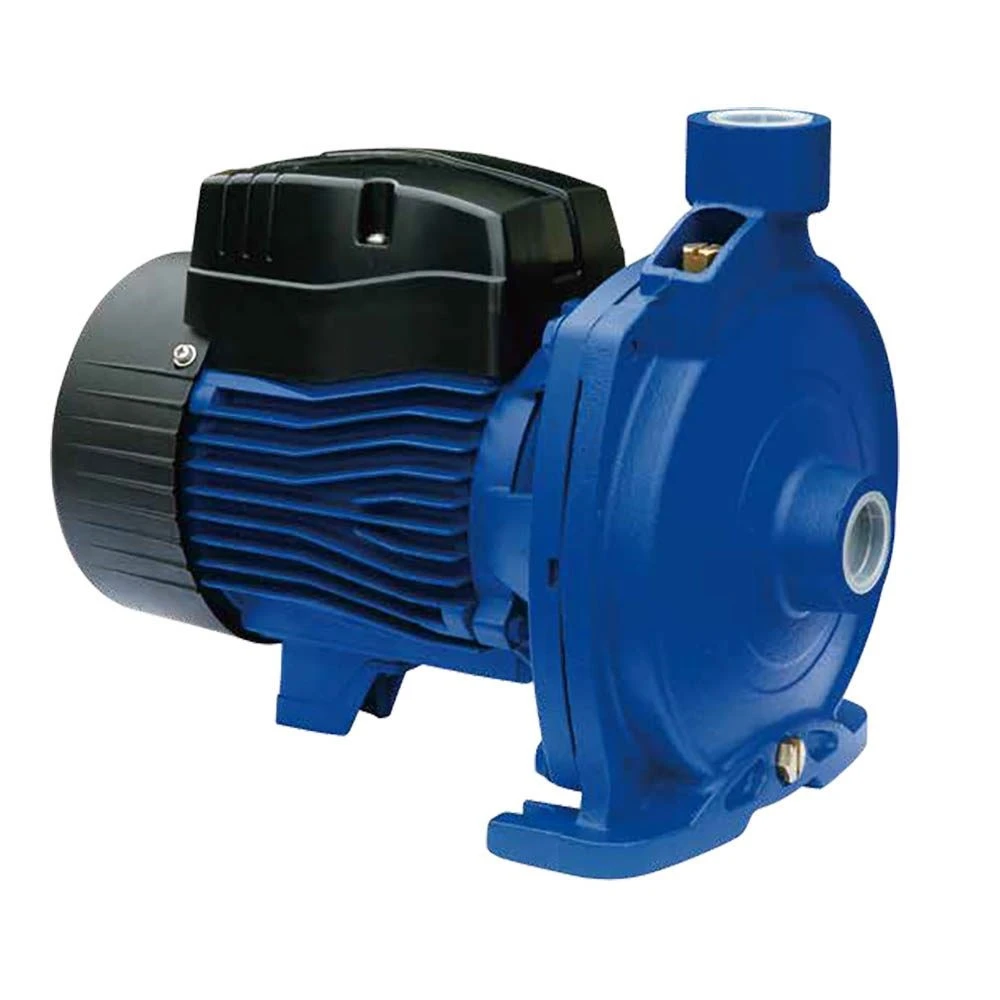

BIANCO FC75M 100LPM CENTRIFUGAL TRANSFER PUMP

The pump is a horizontal single stage cast iron centrifugal pump supplied wired and ready to install. Used especially for water transfer.

The pump is characterised by:

• *Corrosion resistant cast iron pump body with cataphoresis1 treatment, aluminium pump support and 304 stainless steel impeller and shaft.
• Mechanical shaft seal.
• 240V single phase TEFC motor with in-built auto reset thermal overload.
• Motor support foot.

Applications:

• Suitable for industrial wash down, water transfer and tank filling.
• Suitable for fire fighting, HVAC, circulation and pressure boosting.

Technical Specifications

Product Type	Single Stage Cast Iron Centrifugal Pump
Brand	Bianco Pumpz
Suitable For	Clean Water
Bar	3.6 Bar
Amps	5.5 Amps
Flow Range Category	b. 100 – 199 L/min
Flow Rate (L/min)	100 L/min
Hp	1.0 Hp
Kilo Watts	0.75 kW
Head Range Category	a. 0 – 39 m
Head (max)	36 m
Port Size Inlet	1″ Inlet
Port Size Outlet	1″ Outlet
Powered	Electric
Volts	240 V

PLEASE NOTE THIS PUMP IS NOT KEPT IN STORE, PLEASE CONTACT US FOR SHIPPING OPTIONS
