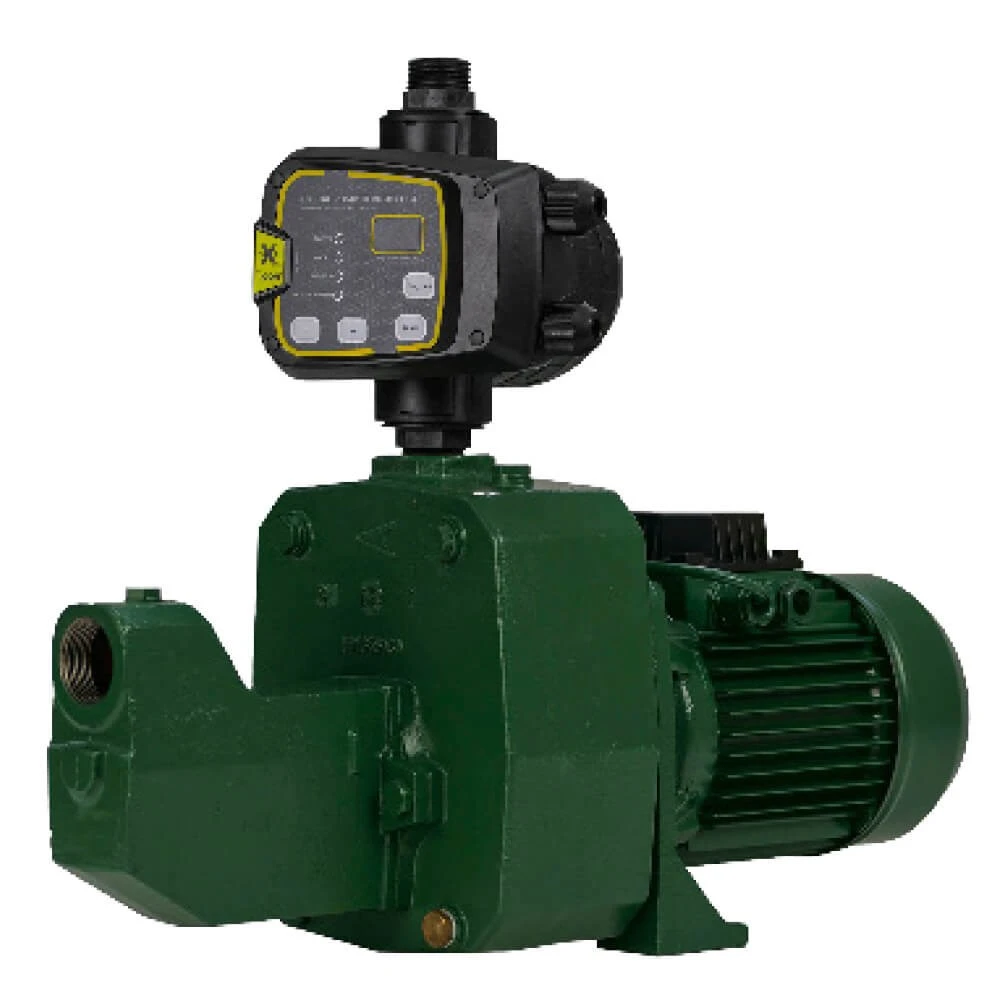

DAB 1100W 151M SHALLOW WELL JET PUMP WITH NXTP PRESSURE CONTROLLER

DAB iCON Powered Pressure System

Ideal for medium to large homes. Suitable for high density urban applications.

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m, 7 taps. Ports 1-1/4” BSPF In, 1” BSPF Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection

Controller Modes
Two operational modes:

Mode One – Adjustable cut in pressure setting.
Controller stops pump when flow drops.
Mode Two – Adjustable cut in and cut out pressure.
Shut down governed by pressure. Requires pressure tank.

nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1″
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
