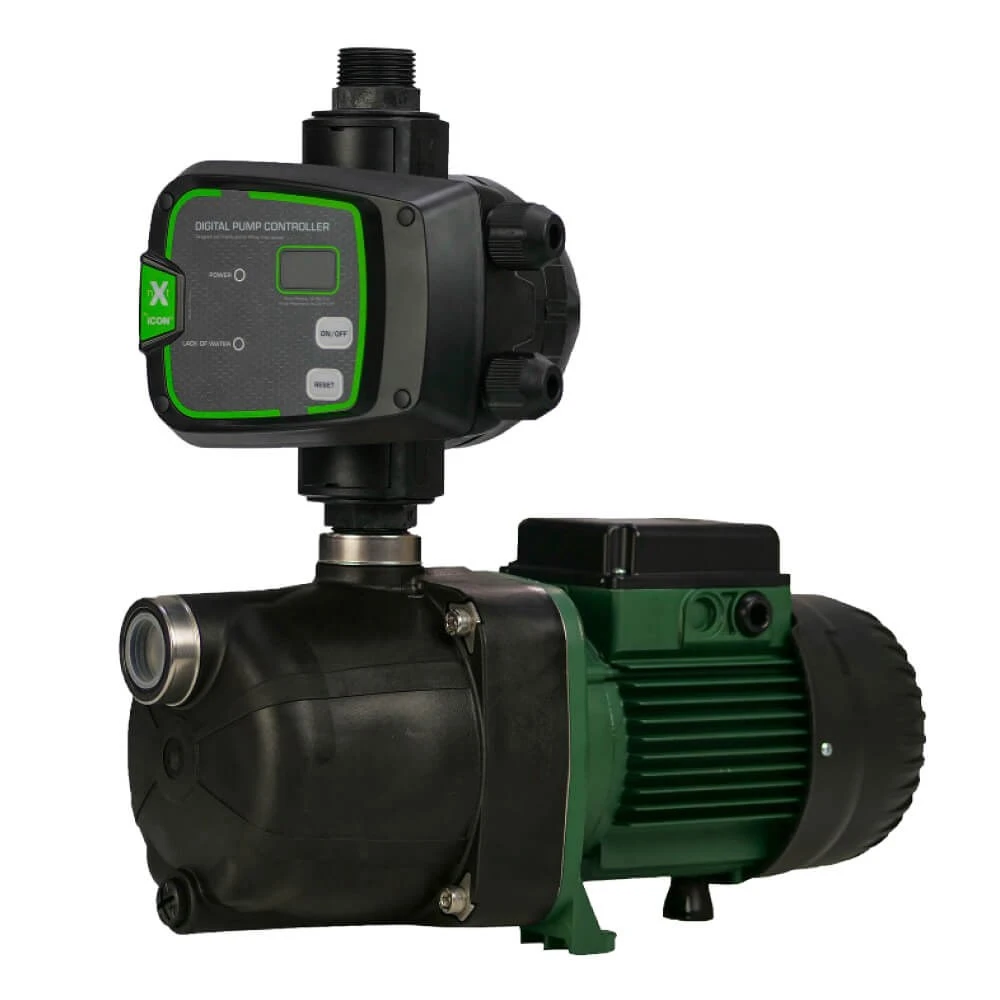

DAB 440W JETCOM62 JET PUMP WITH NXT CONTROLLER

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

PORTS: 1” BSPF IN, 1” BSPM OUT.

Technical Specifications

Product Type	Pressure System
Brand	DAB Pumps
Suitable For	Clean Water
Bar	4.2 Bar
Approval	Approved For Drinking Water
Flow Range Category	a. 0 – 99 L/min
Flow Rate (L/min)	45 L/min
Hp	0.6 Hp
kPa	425 kPa
Kilo Watts	0.44 kW
Head Range Category	b. 40 – 59 m
Head (max)	42 m
Port Size Inlet	1″ BSPF inlet
Port Size Outlet	1″ BSPM outlet
Powered	Electric
Taps	4 Taps
Volts	240 V
Warranty (months)	24 Months
Watts	440 W

Controller
This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection
