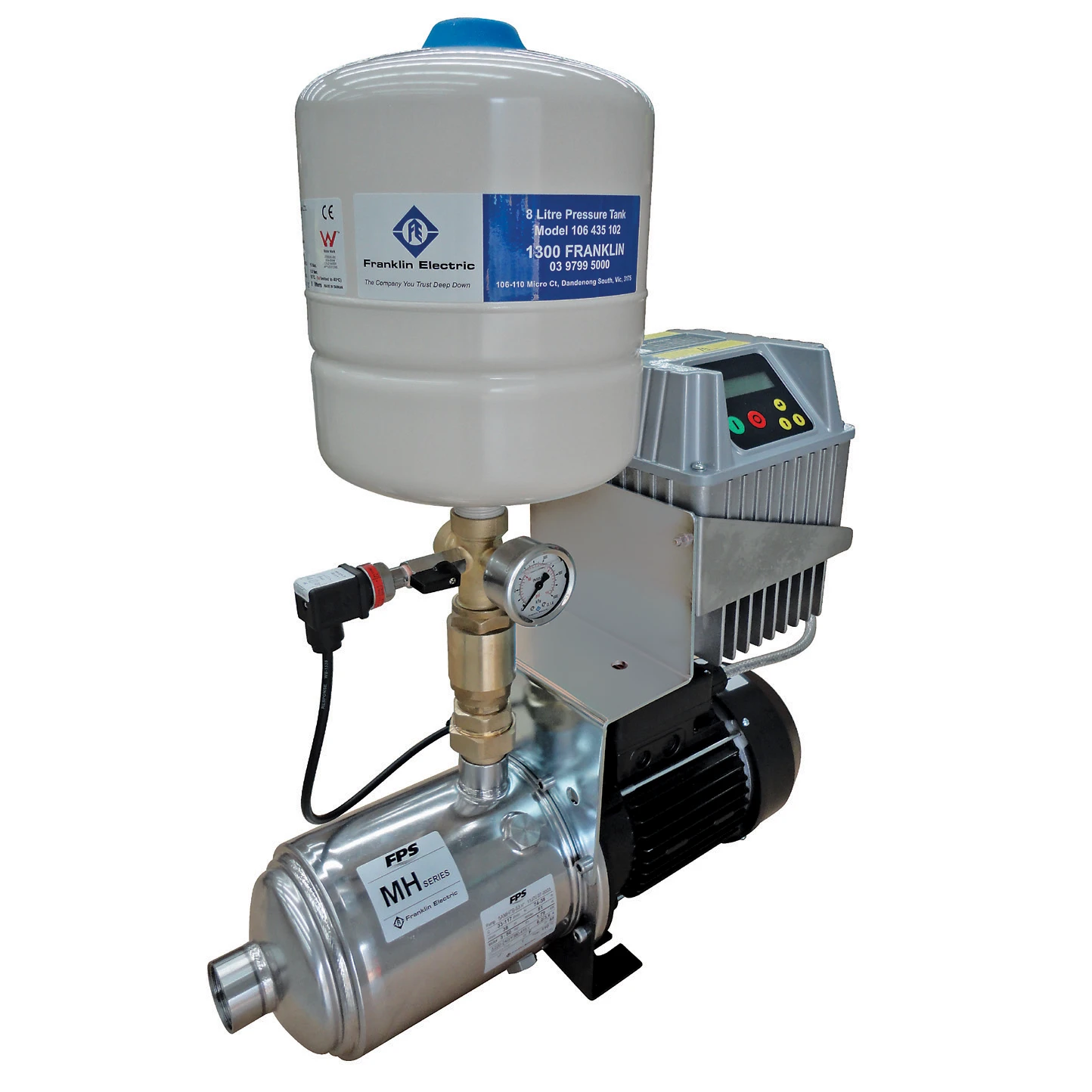

FRANKLIN ELECTRIC 1500W MHQP5 VARIABLE SPEED HORIZONTAL MULTISTAGE PUMP

FRANKLIN ELECTRIC 1500W MHQP5 VARIABLE SPEED HORIZONTAL MULTISTAGE PUMP

MHQP5 Combines an FPS MH pump with the versatile DrivE-Tech to give you the ultimate in constant pressure control performance, exceeding comparable products in the market. Available now in 5 and 9 m3/hr base performances.

PLEASE CONTACT US ON (02 9659 9659) FOR SPECIFIC PRICING

Applications

• Boosting
• Water Transfer
• Commercial Sprinkler Systems
• Industrial
• Residential Sprinkler Systems
• Rainwater
• Wash Down Units
• Commercial Water Features
• Tanks
• Reverse Osmosis
• Aeration

Specifications

• Compact close-coupled design, robust and rust resistant
• Asynchronous, TEFC, Class F insulation, IP55 protection motor 1 phase VSD with built in thermal protection coupled to a 3 phase motor
• 300 series stainless steel on all hydraulic components
• DrivE-Tech VFD by Franklin Electric
• 10 amp 3 pin plug with 2 metre lead
• Capacities up to 8 m3/h (MHQP5) at 50 Hz
• Capable of heads up to 7.5 bar at 50 Hz
• Heavy duty oversized motor shaft
• Suction Inlet – 1.25″ BSP MHQP5
• Discharge Outlet – 1″ BSP MHQP5
• Maximum working pressure 10 bar
• Maximum ambient temperature 40 °C
• Liquid temperature range from -15 to 110 °C
• Easy maintenance
• Made in Italy
• Approved by Brisbane City Council
• Complies with AS/NZS4020 Drinking Water
