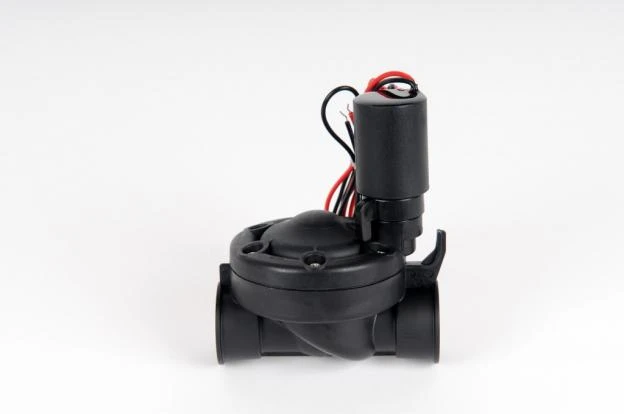

GALCON 25MM DC SOLENOID VALVE

FEATURES

1. Weekly or cyclical programming
2. Up to 4 cycle starts per day
3. Station water time 1 second to 11 hrs 59 seconds
4. Daily loop cycle watering
5. Watering frequency once every minute or once every 30 days in cyclical program
6. Waterproof rating IP68
7. Rain off sensor option (rain sensor optional)
8. Water Budget adjustment -90% to +90% in 10% increments
9. Manual operation
10. Low battery indication on display
11. Control module mounts on valve or_ inside of valve box with mounting bracket supplied
12. DC1S Solenoid connects to industry standard valves: HR, Orbit, Toro & Irritrol – check others
13. DC6S connects to Galcon DCV solenoids
14. 24 hour or 12 hour time format

OPERATION FEATURES CONTROL MODULE

1. Up to 4 cycle starts per day
2. Station water time 1 second to 11 hrs 59 seconds
3. Selectable by day Monday – Sunday
4. Watering frequency once every minute or once every 30 days in cyclical program
5. Daily loop cycle watering
6. Rain delay from 0 – 30 days
7. Water budgeting -90% to +90% in 10% increments
8. Mounts directly over solenoid
9. 2 x 9 volt alkaline batteries (optional extra)
10. Operating pressure 105 – 800 kPa
11. A maintained filter is recommended upstream of the solenoid valve
12. Remove batteries if irrigation suspended for more than 30 days
13. Maximum valve distance from DCS series is 5 metres
