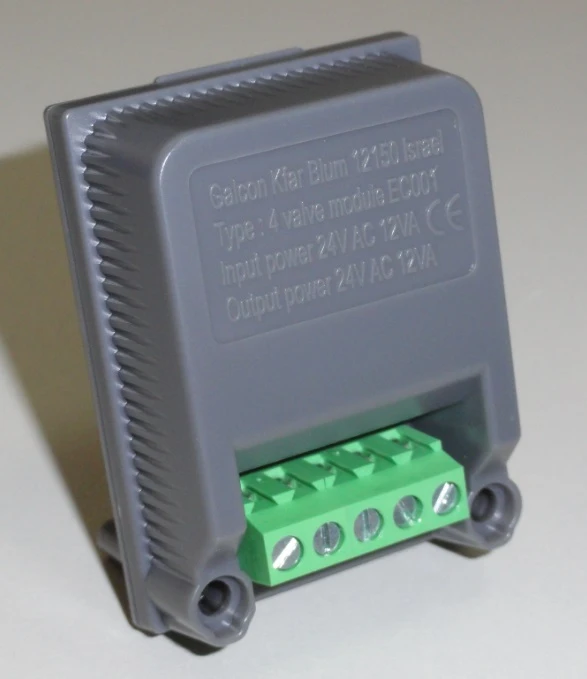

GALCON 4 STATION MODULE FOR 8 STATION 800248 MODULAR CONTROLLER

GALCON 4 STATION MODULE FOR 8 STATION 800248 MODULAR CONTROLLER

Galcon’s AC 80024 is the ultimate modular irrigation system for professional gardeners. Our AC 800024 is an expanded 8-valve, truly plug & play solution. It can accommodate up to 24 stations. With its robust design it is vandal proof. All controllers can also incorporate fertigation and lighting functionalities.

Galcon’s 80024 AC controllers offer two methods of operation from the same controller. Both options can run simultaneously on the same controller.

The first option allows for choosing three programs A, B, C. Each program can be set either according to days of the week or to a cycle. It can easily operate up to 24 valves.

The second option is the ability to program the controller to operate up to 24 valves, each with an independent program.

FEATURES

1. Controls the operation of 1 to 24 valves
2. Modules install in easy to reach central compartment
3. Master valve / Pump Start / Lighting and Fertiliser terminals
4. Sensor input – prevents activation of stations (user can choose)
5. Station run times from 1 minute up to 9 hours
6. Programs – A,B and C
7. Lighting program – switches 24vac up to 40mA
8. Lighting program will not effect MV, Sensor, Fertigation or Water Budget
9. Independent progamming of each station when required
10. Weekly or cyclic irrigation programming
11. Rain Off – from 1 to 99 days
12. Independent weekly or cyclic irrigation programming for individual valves
13. Fertiliser programming for individual valves (see over page for explanation)
14. Fertiliser is added according to watering duration from 10% to 90%
15. Water budget – Selectable between -90% to + 90%
16. Irrigation cycle from once daily to once every 30 days
17. Computerised manual operation of individual valves or valve groups
18. Circuit breaker identifies and overrides a short in a valve, with visual warning
19. Memory backup of program for 20 years (batteries not required)
20. Clock backup with 9V battery (not included)
21. Testing – Allows short circuit detection on faulty solenoids from control panel
22. Clock Battery Warning – low power will appear on display panel
