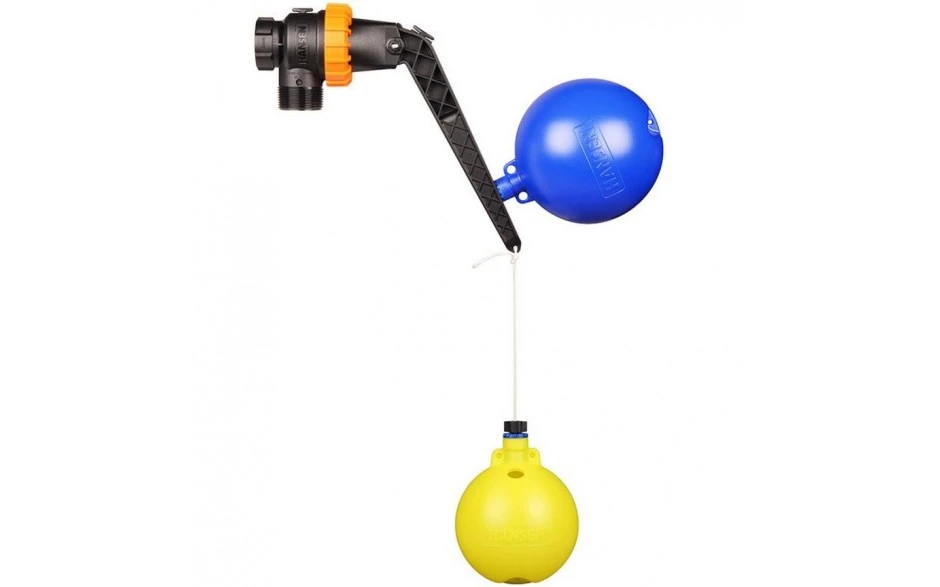

HANSEN TANK RESERVOIR LEVELLER VALVE

The Leveller Valve features the Hansen diaphragm configuration with “Self Cleaning Pilot” which has been designed for soft open and close thus reducing water hammer and increasing pump and water systems life expectancy. The Leveller Valve has been designed to operate reliably in high and low pressures (0.2 bar – 12 bar) and in Clean and Dirty fluid conditions. Each valve is supplied with: Complete Glass Fibre Reinforced Nylon Valve Body and 32mm, 40mm & 50mm Adaptors, Leveller Control, 115mm Weighted HiViz Threaded Ball, 140mm Blue Threaded Float & 2.5metre Cord.

• High performance cost effective Reservoir/Tank valve
• Adjustable Minimum and Maximum on off control (50mm – 2.5 metre)
• Suitable for High/Low pressures (0.2 bar – 12 bar)
• Delivers high volumes of water quickly with unrestrictive full flow (1275 l/min at 12 bar)
• Patent pending “self cleaning pilot” for use in clean/dirty water conditions.
• Soft open and close action preventing valve bounce and water hammer
• Strong compact design
• Threaded outlet for use with a diffuser tube, ideal for high flows, eliminating turbulence
• Punch out anti-syphon holes for multi tank fi lling or diffuser installations
• Manufactured from strong, non corrosive UV stabilised materials
