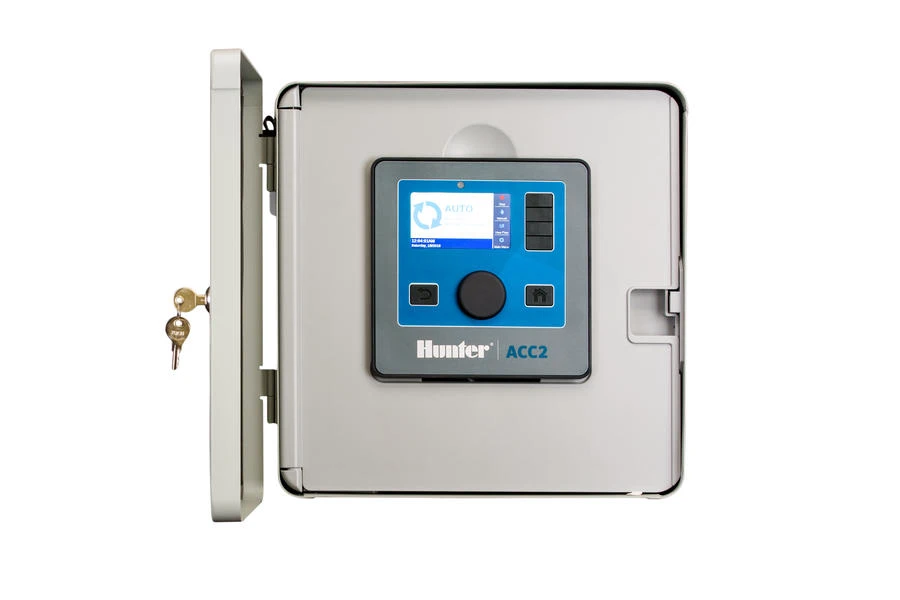

HUNTER ACC2 12 STATION MODULAR OUTDOOR CONTROLLER – METAL CABINET

Original price was: $390.00.Current price is: $96.99.

SKU: AGLSB 4047 Categories: Commercial Irrigation Controllers, Irrigation Controllers & Timers, Irrigation Supplies

Where quality meets convenience.
Quality Products, Quality Service
Control the delivery date and try to deliver it in the fastest time
Product guarantee 100% satisfaction

Description
Reviews (0)

Powerful. Intelligent. Flexible. Hunter’s new ACC2 controller delivers advanced water management to meet the demands of large-scale commercial projects.

At its core, the ACC2 has a powerful transformer, allowing it to safely run up to 14 valves simultaneously, bringing maximum efficiency to large watering schedules. The ACC2 can be configured for any commercial project, from 12 to 54 stations, with up to 6 flow meter inputs, and up to 6 pump/master valve outputs. Its easy-to-read color backlit display and unique reversible facepack make program setup and diagnostics fast and efficient.

The ACC2 has built-in intelligence, with the ability to maintain preset flows on up to 6 flow zones simultaneously. It continually monitors the system for breaks, leaks and electrical faults, interrupting irrigation and pinpointing the source should problems arise. It can even respond to sensor input with specific actions like switching water supplies when water levels drop, or initiating a program when soil moisture is low, and other creative special applications.

The ACC2 offers extreme flexibility with 32 independent programs, 10 start times, and a variety of overlapping, stacking, and flow management configurations. Innovative Conditional Response features use sensor input and other conditions to automatically take pre-programmed actions. Optional external alarm output alerts maintenance personnel to alarm conditions, and the available Wi-Fi module works with nearly any mobile device.

With the ACC2, you’ve got the most advanced commercial controller available, with maximum capability for your largest projects.

Features

Number of stations: 12 to 54
Type: Modular
Enclosure: Outdoor, metal, stainless steel, and plastic pedestal
Independent programs: 32
Start times per program: 10
Max. station run time: 12 hrs
Built in Solar Sync®
Pre-wired with SmartPort®
Built-in SD card reader
Color backlit display, reversible facepack
8 station block programming groups
Warranty period: 5 years

Advanced Features

This water-saving feature allows the operator to specify a maximum cycle time for each single station in hours, minutes, or seconds, followed by a minimum soak time, to prevent runoff from slopes or saturated soil. The operator can enter any run time, and the controller will automatically divide it into cycles to allow the water to be absorbed during the soak periods. The feature is adjustable for each individual station or Block of stations for unique soil and site conditions.

The ability to specify which program will be shut down in response to a specific sensor alarm. This allows programs unaffected by the sensor to continue automatic operations.

ACC2 allows users to specify Calendar Days Off up to a year in advance. Create a list of dates on which the whole controller will not be allowed to run, regardless of Water Day settings.

Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.

MainSafe^™ is an additional level of water source and mainline protection, above the flow zone level. Using a dedicated flow sensor and master valve, the MainSafe^™ settings can protect long runs of mainline pipe, allow dedicated lines for manual irrigation, and monitor monthly usage budgets for multiple flow zones.

Create multiple user IDs with individual PIN numbers and two levels of access. Crew level access allows manual operations and the ability to view programming. Admin level access allows for modifying programming and other settings. When User Management is enabled, operators will be required to enter their pin before operating the controller. You can even review user log-ins in the controller log.

Innovative Conditional Response features use sensor input and other conditions to automatically take pre-programmed actions. Switch from one water supply to another during scheduled irrigation based on level sensors, automatically start specialty programs on sensor input, or create other responses to fit your unique needs with this all-new feature set.

A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

The Solar Sync Delay feature allows the user to postpone seasonal adjustment changes from being made by Solar Sync (for up to 250 days) during the establishment of new landscape. A user may specify a fixed percentage to be used during the delay period. The controller will automatically switch to sensor adjustment after the delay has timed out.

The ACC2 has built-in intelligence, with the ability to schedule stations on up to 6 flow zones simultaneously. It continually monitors the system for breaks, leaks and electrical faults, suspending irrigation and pinpointing the source should problems arise. It can even respond to sensor input with specific actions like switching water supplies when water levels drop, or initiating a program when soil moisture is low, and other creative special applications.

This feature permits connection of a flow meter to recognize high or low flow conditions and react automatically to alarms. The controller learns typical flows for each zone of irrigation and then monitors performance during automatic irrigation. When incorrect flows are detected, the controller can identify the faulty station and shut it down. Use with normally-open or normally closed master valves. Alarm parameters are user-programmable. Flow totals are recorded in controller memory to report system water usage.
