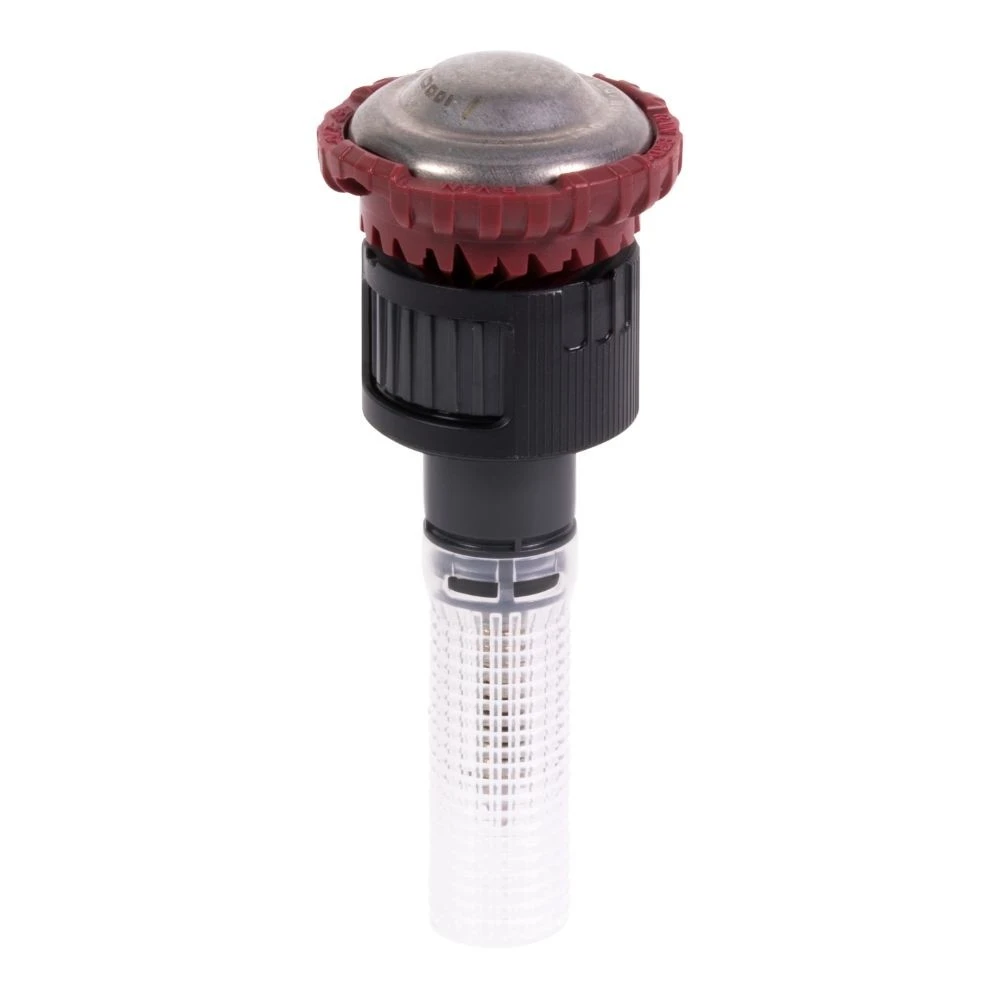

RAIN BIRD RVAN1724 45-270 DEGREE ADJUSTABLE NOZZLE

5.2M – 7.3M RADIUS

Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion.

Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

• Adjust arc and radius without tools
• Colour coded for easy identification of R-VAN model
• Low precipitation rate reduces run-off and erosion
• Maintains efficient performance at high operating pressures without misting or fogging
• Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
• Matched precipitation rates across radius and arcs simplify the design process
• Coverage up to 24’ but when paired with Rain Bird 5000 Series Rotor matched precipitation rate (MPR) nozzles, irrigation designs from 13’ to 35’ (4,0m to 10,7m) can be easily handled

Operating Specifications

• Pressure Range: 30 to 55 psi (2,1 to 3,8 bar)
• Recommended Operating Pressure: 45 psi (3,1 bar)
• Spacing: 13’ to 24’ (4,0 to 7,3m)
• Adjustments: Arc and radius should be adjusted while water is running
